HDMI Optical Fiber Extension Cable
HDTV 1080p extender, high resolution

Fiber Optic Cable digital DVI

HDMI & DVI-D Digital Extension Cables

Extend an HDMI or DVI single link digital source via fiber optic cable up to 328 feet (100 meters).

Also known as: HDMI extender, optical fiber extender, HDMI fiber optic extension cable, DVI extender, DVI-D fiber optic, digital video signal extension cable, DVI display copper cable, balun.

HDMI Fiber Optical Cable up to 10 meters
HDMI-FO-33		 DVI-D Fiber Optical Cable - DVI-F0-33-MM
DVI-FO-33-MM		 DVI-D Fiber Optical Cable - DVI-DS-33-MM
DVI-DS-33-MM

Additional Product Information

 View Data Sheet Data Sheet (PDF)
 DVI Extender via Fiber Optic Cable for use with Digital Signage

Features & Applications

Locate an HDMI display or single link digital DVI display up to 328 feet from a video source using the HDMI-FO-xx HDMI Fiber Optical Extension Cable or the DVI-FO-xx-MM DVI-D Fiber Optical Extension Cable. These cables are an integrated cable solution, which includes the fiber optics components and the DDC signals built into the cable and the connectors.
  • High speed and long distance transmission by optical system.
  • No loss of signal - delivering crystal clear digital images instantly.
  • RGB and Clock signals are transmitted by optical fiber.
  • DDC signal is transmitted by copper line.
  • No external power required.
  • Optical fibers immune to signal noise.
  • Low RFI/EMI for sensitive applications.
  • Perfect solution for cable runs that must be routed through walls and over ceilings.
  • Ideal solution for many applications, including:
    • Medical Imaging Equipment
    • Airplane On-board Video System
    • Home Theater
    • TV Broadcast Station
    • Conference Room Video Equipment

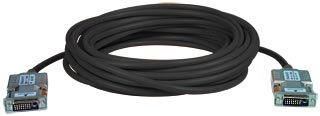

The DVI-DS-33-MM DVI-D copper extension cable extends a single link digital DVI display up to 33 feet from a video source.
  • High speed and long distance transmission by copper cable system.
  • No loss of signal - delivering crystal clear digital images instantly.
  • No external power required.
  • Ideal for extending LCD monitors, HD televisions and DVI input projectors.

Specifications

HDMI Optical Fiber Extension Cables HDMI-FO-xx
  • Compatible with computers and video sources with HDMI outputs.
    • Not compatible with MAC computers.
  • Signal bandwidth: 1.65Gbps (Single Link)
  • Connectors: One Female HDMI Type A connector, One Male Type A on attached cable.
  • Resolution: Supports up to 1900x1200 resolution.
  • HDTV Resolution: Supports up to 1080p
  • Compatible with HDMI standard 1.3
  • Optical source: 850nm VCSEL.
  • O/E Converter: PIN photo diode
  • Fiber: H-PCF graded index multimode fiber.
  • Available lengths: 33/49/65/82/98/131/164/246/328 feet.
  • One 1.5' HDMI male to male cable included.
  • Integrated +5VDC power receptacle; external power supply included.
Environmental
  • Operating Temperature: 32 to 122°F (0 to 50°C).
  • Storage Temperature: -4 to 158°F (-20 to 70°C).
Regulatory Approvals
  • DVI-FO-xx-MM: FCC, CE, RoHS
Warranty
  • Two years
DVI-D Optical Fiber Extension Cables DVI-FO-xx-MM
  • Compatible with computers and video sources (satellite receivers, DVD players, etc) with female DVI-D dual link output connectors.
  • Single link DVI-D signal.
    • Signal bandwidth: 1.65Gbps (Single Link).
  • Connectors: Male DVI-D dual link connectors.
  • Resolution: supports up to 1920x1440.
  • Compatible with DDWG DVI standard.
  • Optical source: 850nm VCSEL.
  • O/E Converter: PIN photo diode.
  • Fiber: H-PCF graded index multimode fiber.
  • Available lengths: 33/49/65/82/98/164/246/328 feet.
DVI-D Copper Extension Cables DVI-DS-33-MM
  • Compatible with computers and video sources (satellite receivers, DVD players, etc) with female DVI-D dual link output connectors.
    • Not compatible with MAC computers.
  • Single link DVI-D signal.
    • Signal bandwidth: 1.65Gbps (Single Link).
  • Connectors: Male DVI-D dual link connectors.
  • Resolution:
    • Support up to 1900x1200
  • Compatible with DDWG DVI standard.
  • Available length: 33 feet.


Connect a DVI source to a DVI display up to 328 feet away

DVI-D Fiber Optical Cables

NTI Part # Length
(ft)		 Price $ # to
Quote		 # to
Buy		 NTI Part # Length
(ft)		 Price $ # to
Quote		 # to
Buy
DVI-FO-33-MM 33 499 DVI-FO-98-MM 98 813
DVI-FO-49-MM 49 589 DVI-FO-164-MM 164 1,135
DVI-FO-65-MM 65 650 DVI-FO-246-MM 246 1,620
DVI-FO-82-MM 82 730 DVI-FO-328-MM 328 2,031

HDMI Fiber Optical Cables

NTI Part # Length
(ft)		 Price $ # to
Quote		 # to
Buy		 NTI Part # Length
(ft)		 Price $ # to
Quote		 # to
Buy
HDMI-FO-33 33 440 HDMI-FO-131 131 1,025
HDMI-FO-49 49 480 HDMI-FO-164 164 1,175
HDMI-FO-65 65 660 HDMI-FO-246 246 1,800
HDMI-FO-82 82 720 HDMI-FO-328 328 2,500
HDMI-FO-98 98 800
DVI Gender Changer
DVII-FF

DVI Female to Female
Gender Changer

NTI Part # Price $ # to Quote # to Buy
DVII-FF 14

DVI-D Copper Cables

NTI Part # Length
(ft)		 Price $ # to
Quote		 # to
Buy
DVI-DS-33-MM 33 180
Request Quote
